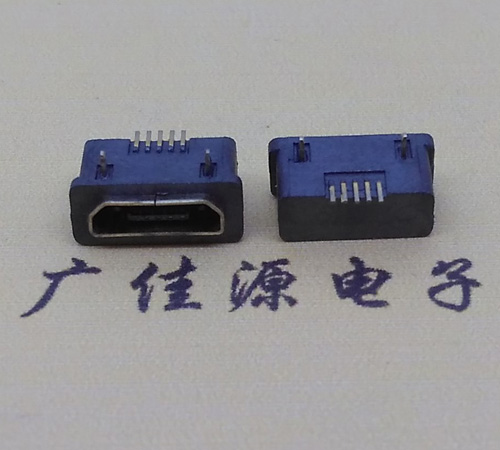

Description of waterproof Micro USB parent product:

Product size: 6.72 x 8.71 x 3.36 mm

Waterproof grade: IPX7

Product model: gt-usb-6001

Product life: 5000 times

Product performance: waterproof, data, charging

Production parameter Note:

1. Material:

1.1 Housing: High temperature

Thermoplastic with g.f. UL94v - 0

1.2 Contact: copper alloy, t = 0.20mm

1.3 Shell: copper alloy, t = 0.25 mm

2. Specification:

2.1 Current rating: 1A Max

2.2 Dielectric withstanding woltage: 100 v (AC) for 1 min.

2.3 Contact to hold: 50 m Ω Max.

2.4 Insulation to hold: 100 m Ω min.

2.5 Tatal mating force: 3.57 Kgf Max.

2.6 Total unmating force: 1.0 Kgf Min. 0.81 ~ 2.05 Kgf Min.

After 10000 insertion/extration cycles

2.7 Temperature range: - 30 ° C to 80 ° C

Waterproof Micro USB female which is IP57 splash proof connector of the updated version, for today's more frivolous mobile devices provide more effective protection, completely isolated from liquid (e.g. water) and solid objects (such as dust) to mobile devices.

IP (entry protection) level specifies the degree of protection against solid objects or liquids. The first number represents the level of protection against the intrusion of solid objects, while the second represents the degree of containment of the liquid invasion. The larger the number, the higher the protection level. TE's IP68 connector can provide waterproof protection for mobile devices at a depth of 1.5 meters, and the waterproof effect can last at least 30 minutes.
